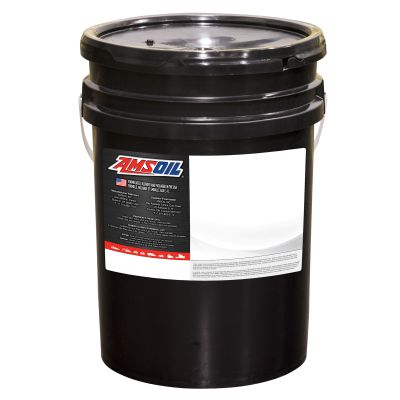

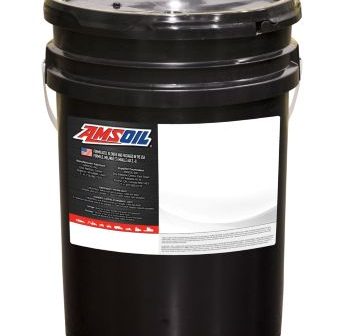

Synthetic Anti-Wear Hydraulic Oil - ISO 22 Protects hard-working hydraulic systems from the stress of high-pressure, high-load and heavy-duty operations. Remains fluid in cold temperatures for immediate cold-weather flow. Special anti-wear additives and rust inhibitors provide optimum protection to expensive equipment.
Protects hard-working hydraulic systems from the stress of high-pressure, high-load and heavy-duty operations. Remains fluid in cold temperatures for immediate cold-weather flow. Special anti-wear additives and rust inhibitors provide optimum protection to expensive equipment.
AMSOIL Synthetic AW Series Anti-Wear Hydraulic Oils are shear-stable, long-life lubricants based on high-quality synthetic oil technology. These oils are formulated with a premium additive system that inhibits oxidation to help prevent acid formation and viscosity increase and inhibit rust and foam (providing smooth hydraulic operation). AW Oils contain a very effective zinc-based anti-wear/antioxidant additive which controls wear in high-speed, high-pressure vane and gear pumps while meeting the lubrication requirements of axial piston pumps with bronze-on-steel metallurgy. Improved pump efficiency can increase hydraulic power, reduce fuel consumption and improve productivity. AW Oils are designed for long life and can typically reduce maintenance costs by extending drain intervals and reducing labor costs, repairs and downtime.
AMSOIL Synthetic Base Oil Technology
AMSOIL synthetic base oils resist thermal and oxidative breakdown, reducing varnish deposits. The very high viscosity indices, low pour points and lack of paraffins (wax) make these good all-season lubricants well-suited for high and low temperature extremes. At high temperatures and pressures, AMSOIL AW Series Oils provide a good lubricating film and protect components against wear. During cold-temperature operation, equipment starts easier and the need for preheating with sump heaters is reduced. The AW Series base oils also readily separate from water, preventing oil/water emulsions that inhibit lubrication and allowing for longer lubricant life and easier water drainage from the sump.
The correct viscosity grades of AMSOIL Synthetic AW Series Anti-Wear Hydraulic Oils are recommended for high- and low-pressure gear, vane and piston stationary and mobile hydraulic systems. They are excellent for general-purpose use where extended drain intervals are desired and in severe-duty operations where temperature extremes are encountered.
AMSOIL AW Series Oils are compatible with hydraulic system seals, petroleum hydraulic oils and most synthetic hydraulic oils*. For optimum performance, it is recommended the system be thoroughly drained and, if warranted, cleaned prior to installation. Oil analysis is recommended to maximize oil drain intervals.
* Not compatible with phosphate ester, silicone or water-based fluids.
* Except for PM-500 series silver-containing pumps which require R&O additive systems.
AMSOIL PRODUCT AVAILABILITY
AMSOIL industrial lubricants are stocked in Superior, Wisconsin and in select regional distribution centers throughout the United States and Canada. AMSOIL will stock additional quantities of lubricants or special-order products based on customer requests and regional demands.
AMSOIL PRODUCT WARRANTY
AMSOIL products are backed by a Limited Liability Warranty. For complete information visit www.amsoil.com/warranty.aspx.
HEALTH & SAFETY
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). USA and Canada (M)SDS are available upon request at 715-392-7101 or on the AMSOIL Website. Keep Out of Reach of Children.
|Synthetic AW Series|
Antiwear Hydraulic Oils
|ISO VG - ASTM D2422||22||32||46|
|VK 100°C cSt - ASTM D445||5.9||7.3||9.7|
|VK 40°C cSt - ASTM D445||20.7||32.0||48.0|
|Viscosity Index - ASTM D2270||256||205||192|
|SpGr - g/ml - ASTM D1298||0.8363||0.8408||0.8483|
|Density - lb/gal - ASTM D1298||6.964||7.001||7.063|
|Flash Point °C (°F) - ASTM D92||174 (345)||228 (442)||230 (446)|
|Fire Point °C (°F) - ASTM D92||188 (370)||248 (478)||254 (489)|
|Pour Point °C (°F) - ASTM D97||<-60 (<-76)||<-51 (<-60)||<-47 (<-53)|
|Four-Ball Wear Test - ASTM D4172B (40 kg, 1200 rpm, 75° C, 60 min.)||0.45||0.45||0.45|
|Copper Strip Corrosion Test - ASTM D130||1A||1A||1A|
|Foam - ASTM D892|
Sequence I, II, III Test End
|Dielectric Strength - ASTM D877 Voltage, kV AC||43.6||46.20||45.40|
|Demulsibility - ASTM D1401 Oil/Water/Cuff (min)||40/40/0 (10)||40/40/0 (10)||40/40/0 (10)|
|Rust Test - ASTM D665 A & B|
Fresh Water and Synthetic Sea Water
